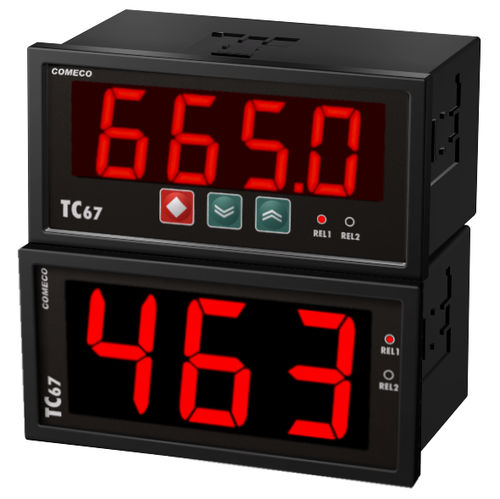

TC67U is designed for wide range of control applications. It is equipped with a large LED display and 2 programmable relay alarm outputs. TC67U has a universal input accepting signals from Pt100, Pt1000, PTC, 6 thermocouple types as well as linear current and voltage signals from external transmitters. This device also has a built-in circuit for self-testing and self-calibration, manual measurement offset setting, and automatic software compensation of line resistance and cold junction temperature. The display-to-input correspondence (in case of linear input), decimal point position, temperature measurement unit, and offset value are also programmable through the convenient keyboard. Thanks to its large display, universal input, serial interface, and excellent price-to-performance ratio, TC67U is exceptionally widely applicable device.

Parameter Name	Parameter Value
Measured value	temperature
Display	digital
Type	panel-mount
